What Is a Worm Gear Operator?
A manual valve actuator using worm-and-wheel gearing to multiply handwheel torque — the industry standard for quarter-turn and multi-turn valve applications with ISO 5211 mounting.
Worm Gear Operators · ISO 5211 / API 6D
ValveWormGear engineers and manufactures industrial worm gear operators for manual valve actuation and automation-ready installations across water, energy, mining, and process industries. Our product platform spans quarter-turn and multi-turn configurations, self-locking worm sets, heavy-duty housings, stainless steel builds, and IP67/IP68 environmental protection — all with ISO 5211 mounting interfaces for butterfly, ball, gate, globe, and plug valves. Whether you need catalog units for a distribution program or OEM/ODM volumes with custom torque ratios and private labeling, we deliver 100% torque-tested gear operators backed by application engineering and global export documentation.
Product Platform
Our worm gear operator line is a unified engineering platform — validated worm geometry, ISO 5211 / ISO 5210 interfaces, and factory torque verification on calibrated benches. Materials include ductile iron, aluminium, and SS304/SS316 with IP67/IP68 protection for harsh environments.
A manual valve actuator using worm-and-wheel gearing to multiply handwheel torque — the industry standard for quarter-turn and multi-turn valve applications with ISO 5211 mounting.
Gear ratios of 30:1–80:1 multiply input effort to valve stem torque. Self-locking worm geometry holds position without a separate brake in properly specified units.
Compact high-ratio drives sized against BTO/RTO/ETC duties — low maintenance, ISO-standard mounting, and field retrofit with adapter flanges.
Product Families
Select by actuation type, torque class, materials, and environmental protection. Each category below links to detailed specifications, torque tables, and dimensional drawings.
Choosing the correct worm gear operator category is the first step in any valve automation project. Quarter-turn models cover the majority of butterfly, ball, and plug valve applications from 300 Nm through 6,000 Nm. Self-locking and high-torque variants address safety-critical and large-bore pipeline duties. Stainless steel and IP-rated enclosures extend service life in corrosive, marine, and submerged environments. Multi-turn and bevel gear configurations handle gate, globe, and remote drive layouts where 90° output is insufficient. All categories share ISO 5211 compatibility and factory torque testing — differences lie in ratio, housing mass, sealing, and material grade matched to your operating envelope.

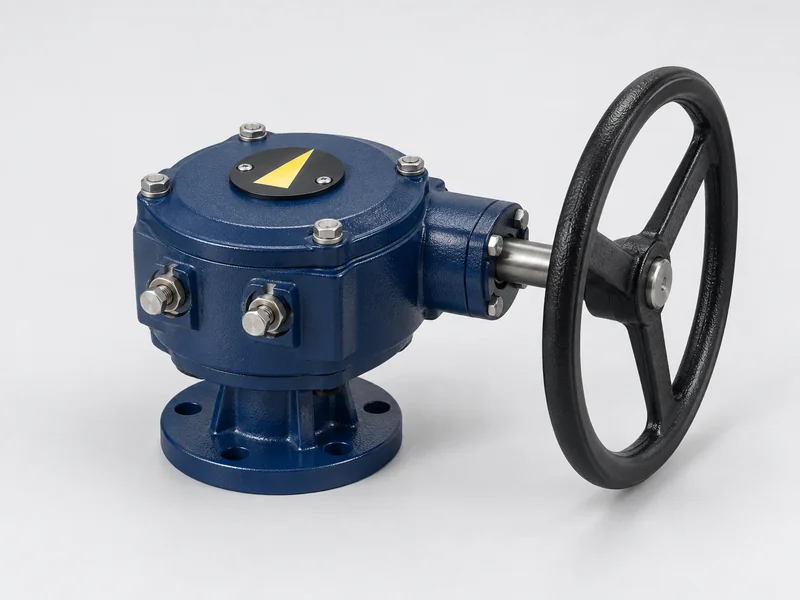

Compact worm gear operators for 90° butterfly, ball, and plug valves — water, HVAC, and process isolation.

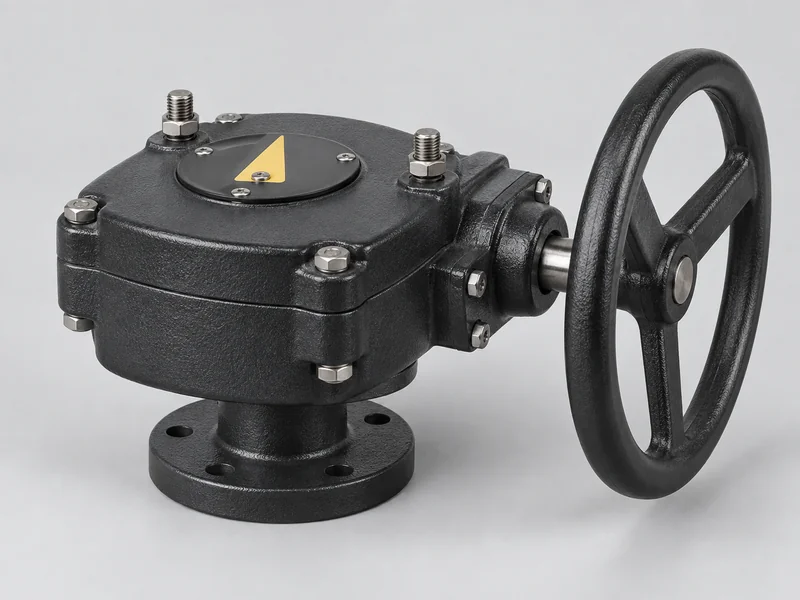

Verified holding torque under process load — prevents valve drift on horizontal stems and large disc valves.

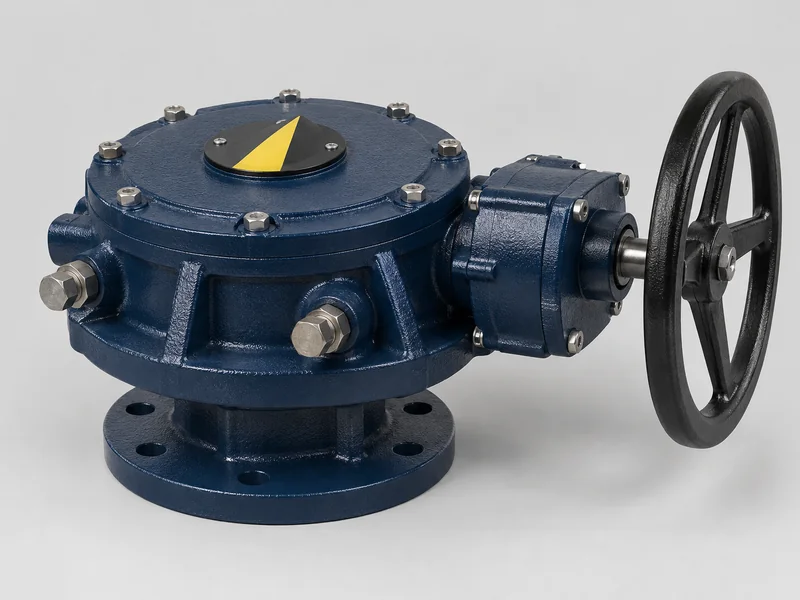

Reinforced housings and hardened worms for DN600+ valves — output to 12,000 Nm with F16–F35 interfaces.

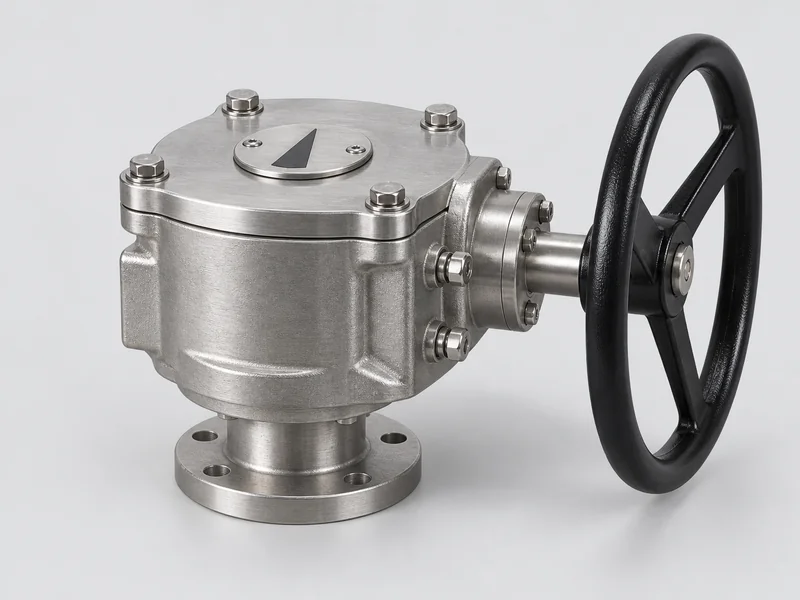

Corrosion-resistant builds for chemical, marine, food-grade, and coastal installations.

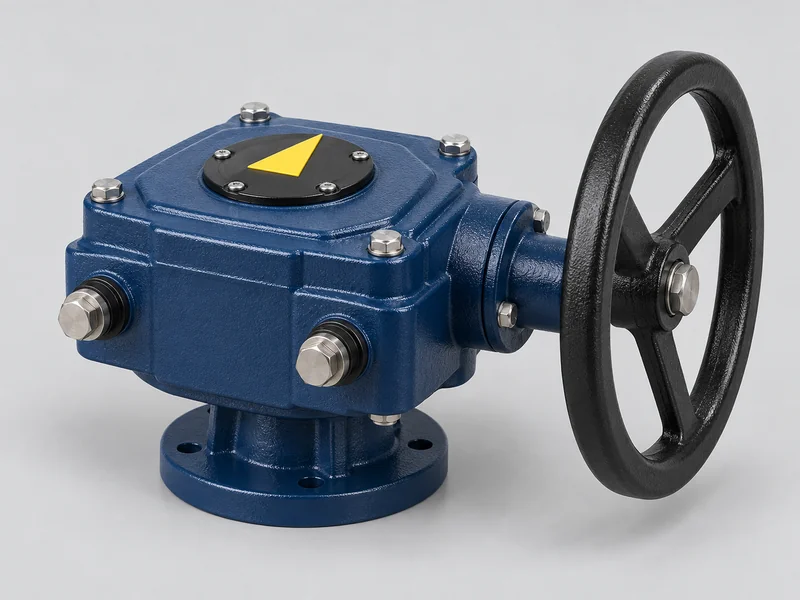

Dust-tight and temporary immersion for valve pits, loading racks, and exposed pipe bridges.

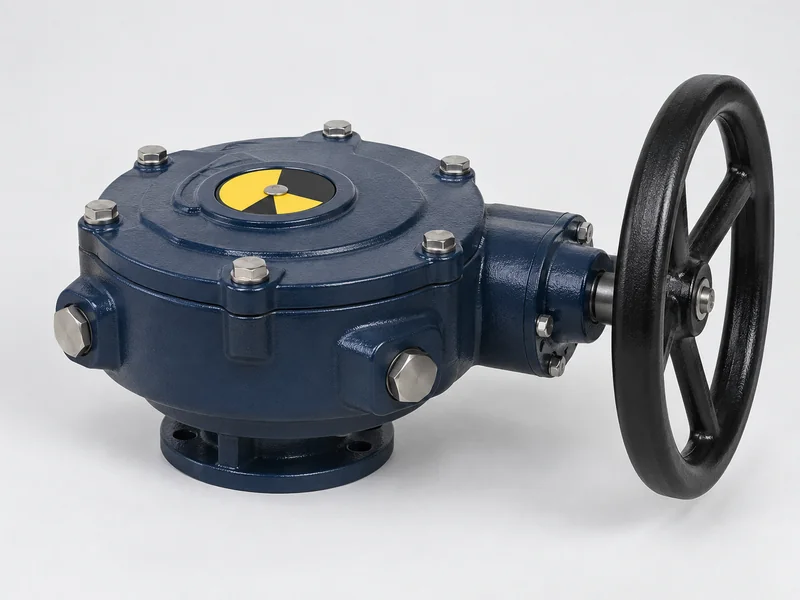

Continuous submersion for wet wells, sewage lift stations, and tank-bottom valves.

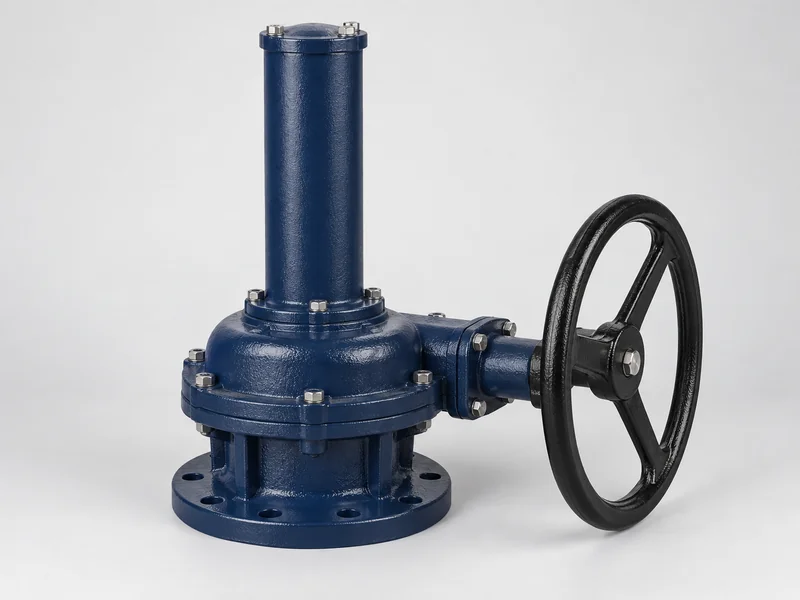

Gear trains for rising-stem gate and globe valves with thrust bearings sized to stem axial load.

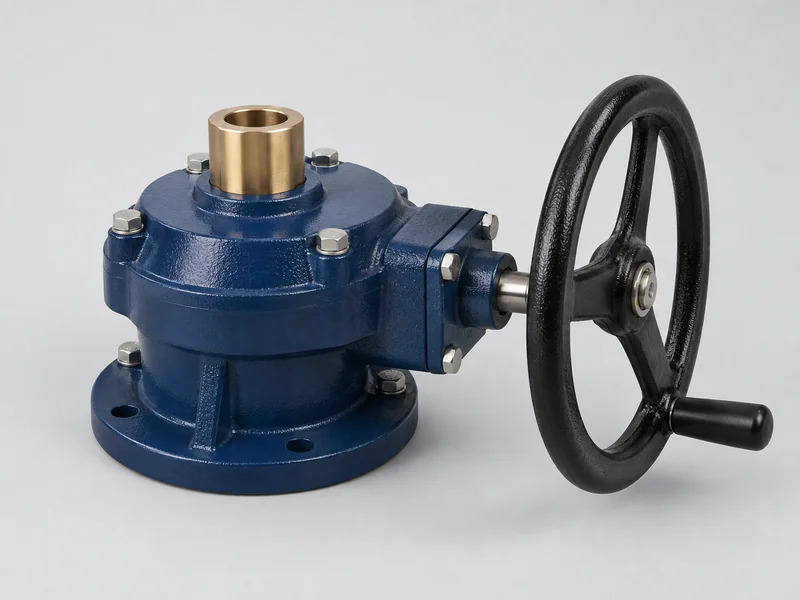

Bevel gearboxes for remote operation, vertical stems, and confined machinery spaces.

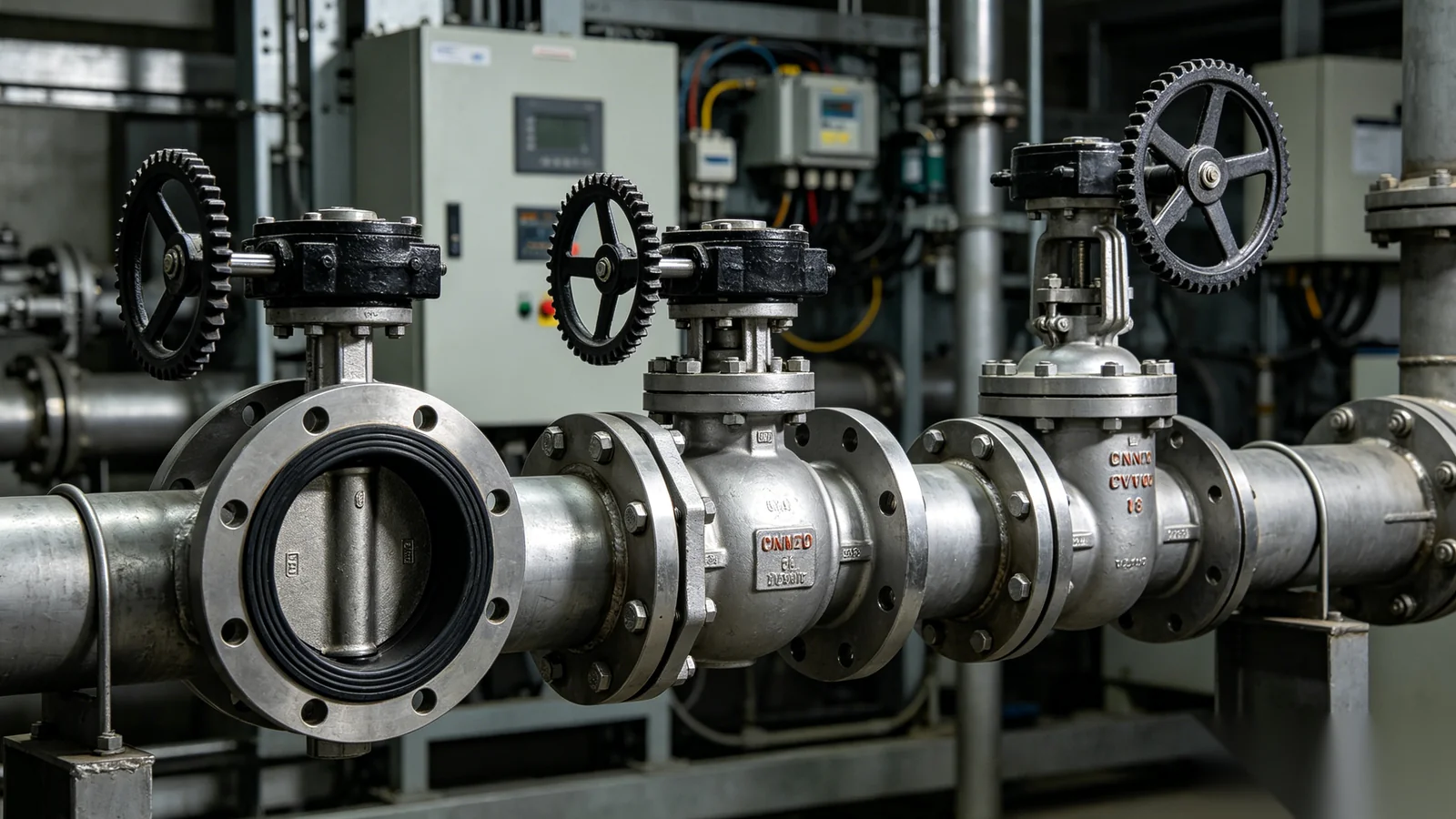

Valve Compatibility
Worm gear operators mount via ISO 5211 (quarter-turn) or ISO 5210 (multi-turn). Send your valve datasheet and our engineers confirm compatibility, adapter kits, and torque verification before order release.
90° rotation for butterfly, ball, and plug valves — BTO sizing with 1.25–1.5 safety factor and ISO 5211 F07–F35 flange alignment.
Rising-stem gate and globe valves with thrust bearings sized for stem axial load — hydropower, steam drains, and refinery gate service.
Pipeline and LNG peak torques with declutchable overrides and actuator-ready couplings for emergency manual operation.
Technical Design
Every worm gear operator we manufacture is designed around repeatable torque delivery, environmental protection, and decades of service in demanding infrastructure. Worm geometry is cut and inspected to maintain contact patterns that minimize wear and heat generation. Housing joints, stem seals, and cover bolts are specified to match the declared IP rating — not merely badge compliance. ISO 5211 drive sleeves and stem couplings are stocked in standard bore sizes with custom machining available for non-standard valve stems. Whether your priority is self-locking assurance, salt-spray survival, or minimal maintenance in remote sites, the feature set below defines what separates industrial-grade operators from light-duty hardware.
Our engineering team cross-references your process conditions — temperature, media, duty cycle, and installed environment — against material and seal selections before releasing production orders. That discipline reduces early-life failures and warranty exposure on OEM programs and EPC contracts alike.

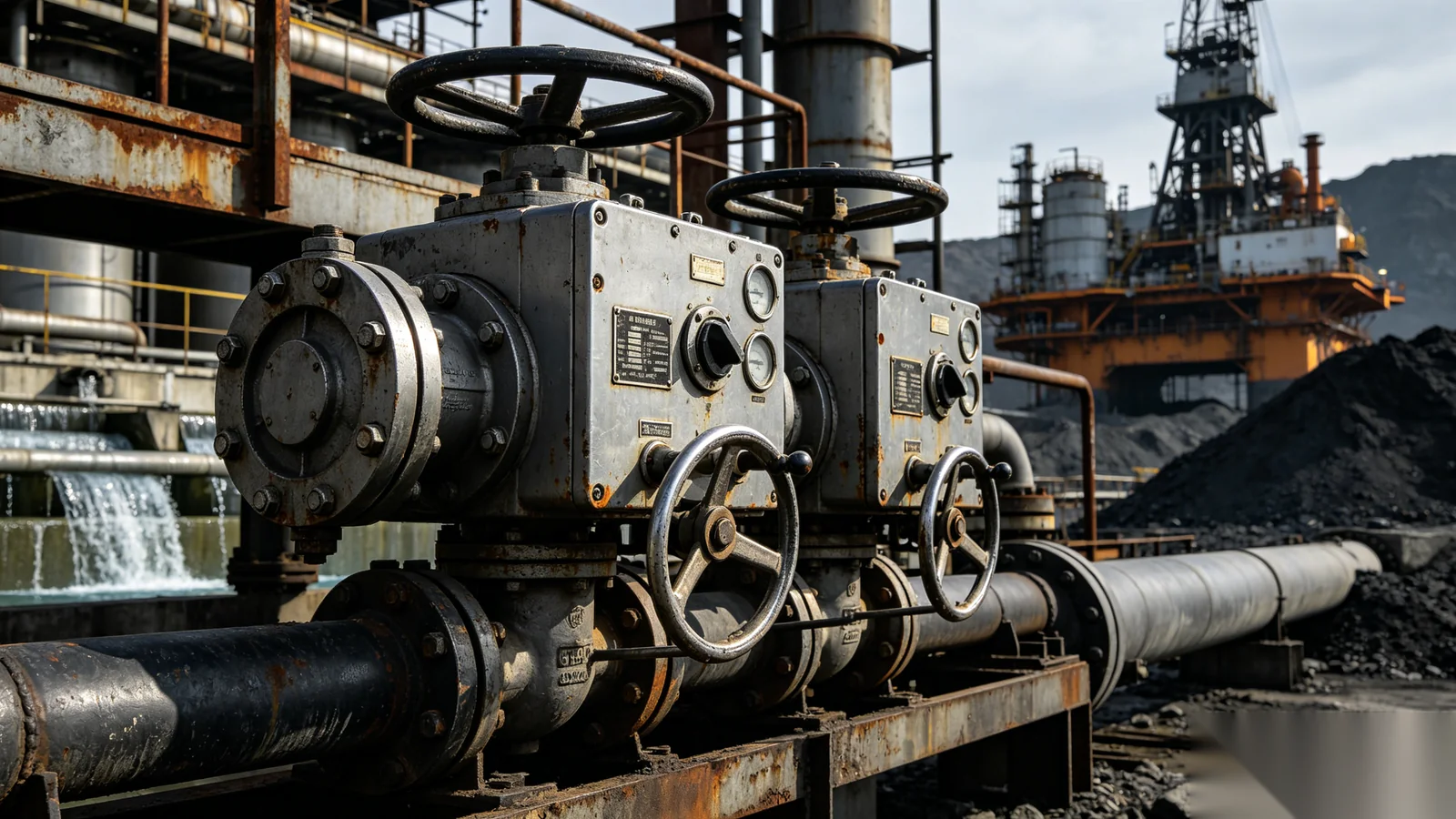

By Industry
Application engineers align torque, materials, and IP class to your P&ID and site standards — not generic catalog defaults.
Chlorinated and brackish service with IP67/IP68 wet-well options for municipal and desalination plants.
API 6D alignment, fire-zone awareness, and documentation for pipeline block valve acceptance.
High-temperature stem interfaces and extended cycle ratings for critical isolation valves.
Hardened worms and heavy-duty housings for abrasive slurry and high-cycle knife gate lines.
Salt-spray coatings and compact layouts for shipboard and platform valve decks.
SS316 upgrades, PTFE seals, and specialty coatings for aggressive acids and solvents.
Partnership Programs
Valve manufacturers, distributors, and EPC firms partner with us for OEM and ODM programs — custom ratios, stem couplings, private labeling, and export documentation under NDA with first-article torque verification.
Your part numbers, labels, and packaging with locked BOM and witness testing at our Wenzhou facility.
STEP, IGES, and SolidWorks models with installation drawings — prototypes in 6–8 weeks typical.
Ratio and housing sizing from valve drawings with safety factor documentation per lot.
Multilingual manuals, ISPM-15 crating, and documentation for distributors in 80+ countries.
Factory Capabilities

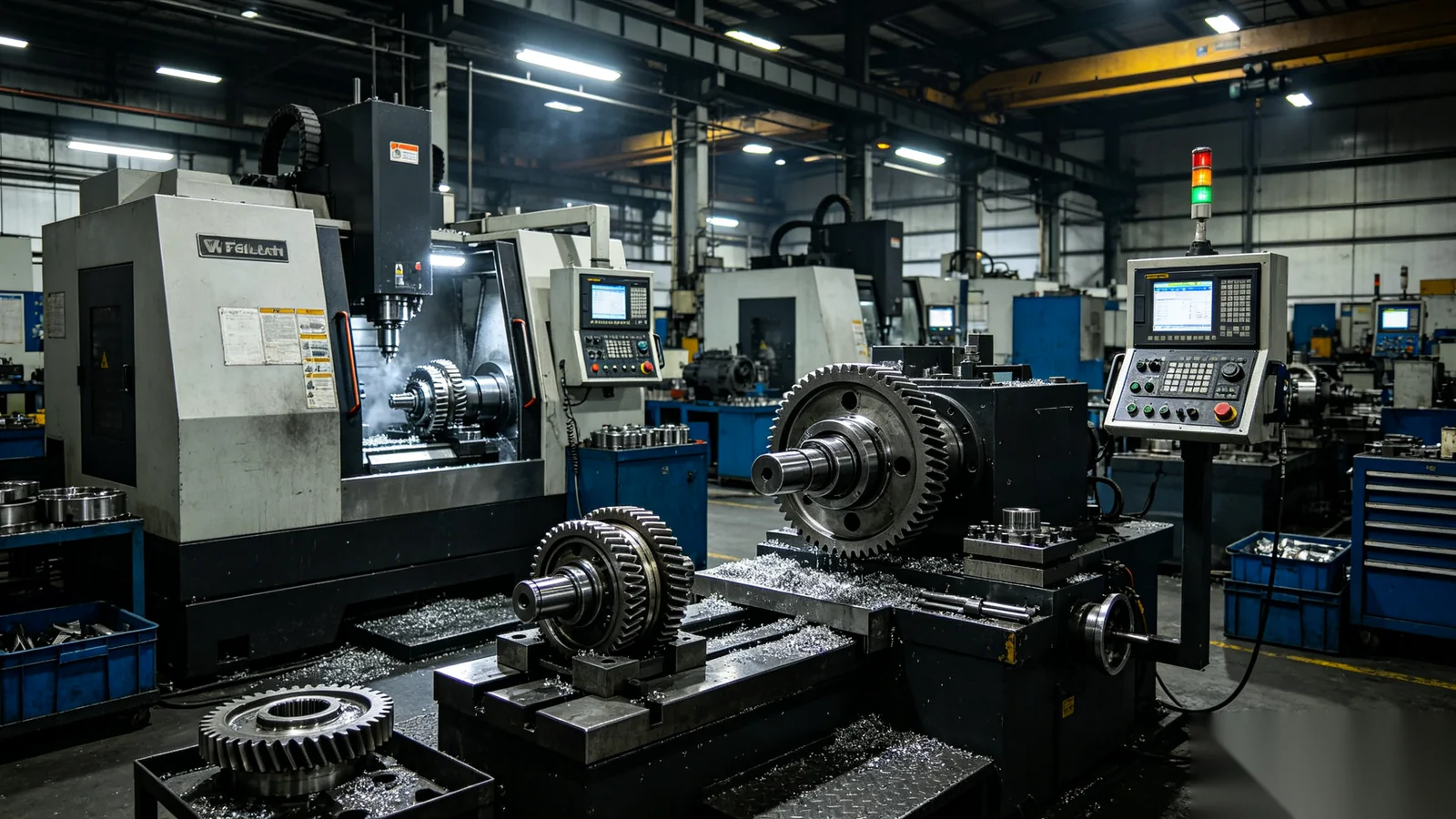

Manufacturing worm gear operators that survive decades in field service requires control from casting through final torque test. Our facility integrates CNC machining centers, gear hobbing lines, automated assembly cells, and calibrated test benches under one ISO 9001 quality management system. Incoming castings and forgings are inspected for material certification and dimensional sampling before machining. Worm and wheel pairs are lapped or run-in tested as matched sets where required. Surface coating processes — epoxy dip, spray, and nickel plate — follow documented cure schedules and adhesion checks. Every shipped unit receives a serial-linked test record traceable to batch material and operator ID on the bench.
Customers auditing our capability will find instrument calibration logs, non-conformance tracking, and corrective action closure rates available during supplier qualification. We welcome factory visits and remote video walkthroughs for OEM onboarding.
Engineering Tools
Correct specification eliminates field rework and warranty disputes. Use the pathways below — or send your valve datasheet for complimentary sizing by our application engineers.
Selection begins with the valve torque curve at design conditions, not the handwheel size. We recommend documenting BTO, RTO, ETO, and safety factor before comparing catalog tables. Flange interface must match ISO 5211 bolt circle and stem height; material and IP class follow from media and installation environment. Operation type — pure manual, declutchable override, or automation-ready — determines coupling and housing options. Our support team responds to sizing requests within one business day with a written recommendation and dimensional outline drawing where needed.
300 Nm to 12,000 Nm — compare ratios and handwheel rim pull against valve torque sheets.
Torque guideISO 5211 F05–F35 and ISO 5210 multi-turn base mounts with adapter guidance.
ISO tablesDuctile iron, stainless, coatings, and IP67/IP68 for corrosive or submerged duty.
IP68 rangeQuarter-turn, multi-turn, declutchable, and actuator-ready from one supplier.
Engineering helpYour Manufacturing Partner
Global valve projects succeed when gear operators deliver rated torque on installation day and keep delivering through the asset life. We compete on engineering transparency, manufacturing depth, and export execution — not on unspecified catalog claims.
Application engineers sized on pipeline, utility, and energy projects — not retail hardware support.
Private label, custom ratios, and locked BOM control for valve OEM and distributor programs.
CNC and hobbing under ISO 9001 with instrument calibration and traceable serial records.
Shipments to 80+ countries with documentation packages accepted by EPC and utility buyers.
STEP, IGES, and installation drawings issued within 24–48 hours of confirmed requirements.
Standardized interfaces across F05–F35 with adapter solutions for legacy valve patterns.
Hardened worms, quality bearings, and sealed lubrication designed for decades in infrastructure duty.
Remote sizing, commissioning guidance, and spares identification via email, phone, and video.
Common Questions
Worm gear operators are used with butterfly, ball, plug, gate, globe, and knife gate valves — essentially any valve requiring manual rotation or rising-stem translation within our torque range. Quarter-turn operators suit 90° valves; multi-turn and bevel configurations suit rising-stem gate and globe valves. Compatibility depends on ISO 5211 or ISO 5210 mounting, stem bore, and torque duty at design pressure. Send your valve datasheet and we confirm fit, recommend adapters, and verify safety factors before you order.
Quarter-turn operators rotate the valve stem 90° between fully open and closed — standard for butterfly, ball, and plug valves. Multi-turn operators require many revolutions to move a rising stem through its travel, as on gate and globe valves. Multi-turn units often include additional gear stages or bevel drives and are rated for thrust load as well as torque. Selecting the wrong type results in insufficient travel or mechanical overload — our engineers clarify this during sizing from your valve manufacturer data.
Yes. IP67 models are dust-tight and protected against temporary immersion — suited to outdoor pits, loading racks, and exposed installations. IP68 models are designed for continuous submersion at specified depths, common in wastewater wet wells and tank-bottom valves. Sealing includes O-ring housing joints, stem glands, and coated exterior surfaces validated against project test protocols. Declare your immersion depth, media chemistry, and temperature when requesting a quote so we assign the correct seal materials and housing design.
Yes. We manufacture custom gear ratios, stem couplings, center heights, handwheel sizes, and auxiliary drive interfaces under OEM and engineering orders. Non-standard ISO patterns are addressed with adapter flanges. Prototype lead time is typically 6–8 weeks depending on tooling; series production follows first-article approval. Torque targets are validated on our test bench with reports issued per serial number. Provide target output torque, stem dimensions, envelope limits, and environment class to begin a custom review.
We support valve OEMs, distributors, and EPC contractors with private labeling, neutral packaging, volume pricing, and full export documentation. Programs include locked BOM control, change notification, witness testing, and third-party inspection coordination. Our logistics team handles Incoterms, certificates of origin, and market-specific compliance markings. Annual volume agreements reduce lead times on repeat models. Contact our OEM desk with forecast quantities and branding requirements to receive a program proposal and sample timeline.
Share your valve datasheets, torque requirements, or OEM program scope — our engineering team prepares a technical proposal with model recommendations, dimensional outlines, and commercial terms within one business day. Whether you need catalog quarter-turn units, IP68 submerged builds, or custom-ratio manufacturing at volume, we support RFQ, CAD review, witness testing, and global shipment from our ISO-certified facility. Start with a quote request or speak directly with application engineering for sizing confirmation.
