Valve Gear Operator Solutions for Water Treatment Systems

Water treatment plants depend on dependable valve control across intake, clarification, filtration, disinfection, and distribution — where butterfly valves, gate valves, and ball valves must operate reliably under humid, corrosive, and cyclic-duty conditions. Our engineering focus is heavy-duty worm gear operators and valve automation packages built for municipal infrastructure and industrial water systems: corrosion protection for outdoor service, torque paths sized for sludge and high-head isolation, and interfaces ready for electric actuators and SCADA integration. This solution page documents how gear operator selection supports safe flow control, long service life, and maintainable water infrastructure — not catalog claims, but application understanding your EPC, OEM, and utility teams can evaluate against real plant layouts.

Request Water Treatment Solutions Contact Engineering Team

Municipal & Wastewater Corrosion Protection SCADA-Ready Automation

Industry Context

Industrial Valve Automation for Water Treatment Systems

Municipal water systems, wastewater treatment facilities, and industrial water processing plants share a common control challenge: valves must isolate, throttle, and divert flows that range from clean potable water to abrasive sludge and chemically treated streams — often outdoors, underground, or in humid pump galleries where corrosion accelerates wear. Valve automation in these environments is not only about turning a handwheel; it is about matching gear operators to valve type, torque profile, duty cycle, and environmental exposure while preserving manual override for maintenance and emergency operation. Flow control reliability directly affects public health, environmental compliance, and plant uptime, so gearboxes must hold position, resist back-driving, and survive decades of service with predictable inspection intervals.

Long-term reliability in water infrastructure depends on material selection, sealing strategy, and integration discipline as much as on nominal torque rating. Engineers specify butterfly and gate valves for different isolation roles; ball valves appear in chemical dosing and utility lines; sludge systems impose shock loads and contamination that punish undersized operators. Corrosion resistance — coatings, stainless hardware, and IP-rated enclosures — is standard engineering practice, not an upgrade. Whether the project is a greenfield municipal plant, a wastewater upgrade, or an industrial pretreatment skid, valve gear operators sit at the intersection of mechanical robustness and automation readiness. The sections below map applications, gearbox solutions, environmental protection, remote operation, project support, and manufacturing assurance for water industry stakeholders.

Valve Control Requirements in Water Treatment Plants

Water treatment plants segment flow through intake screens, clarifiers, filters, UV or chemical disinfection, and storage before distribution — each stage uses isolation and modulating valves with different torque and speed needs. Butterfly valves dominate large-diameter low-head lines; gate valves provide tight shutoff on drain and bypass lines; check and control valves protect pumps and basins. Gear operators must align with ISO 5211 mounting patterns, stem heights, and thrust where applicable, while leaving clearance for actuators and position indication. Duty cycles include frequent exercise for critical isolation, long static periods on standby lines, and occasional full-stroke operation under differential pressure. Specifiers should document operating torque, safety factors, and whether the service is clean water, raw water, or sludge so gearbox ratio and housing strength match real loads rather than catalog minimums.

Importance of Reliable Gear Operators in Water Infrastructure

Municipal and industrial water infrastructure operates continuously; a seized or drifting valve can interrupt supply, overflow a basin, or force unplanned shutdowns. Reliable gear operators provide self-locking worm stages that hold position without continuous power, reducing risk on large butterfly and gate installations. Mechanical integrity — hardened worms, aligned bearings, and controlled backlash — translates to repeatable indication and safer handwheel operation for field crews. Maintenance teams value standardized operators across a site so spares, procedures, and training stay consistent. For owners, lifecycle cost favors gearboxes that resist moisture ingress, maintain coating integrity, and accept actuator retrofit without replacing the valve topworks. Engineering trust comes from documented torque verification, corrosion systems matched to environment, and technical support during commissioning — the same expectations EPC contractors carry into water treatment bids worldwide.

Heavy Duty Valve Automation for Municipal Systems

Municipal systems increasingly combine manual gear operators with electric actuators and supervisory control for remote operation, leak detection coordination, and optimized energy use at pump stations. Heavy-duty valve automation packages must bridge quarter-turn and multi-turn valves, declutchable overrides where specified, and interfaces compatible with common actuator footprints. Torque transmission paths should tolerate occasional stuck conditions within defined limits without damaging stems or disc seats. Outdoor cabinets, buried vaults, and elevated tank sites demand environmental ratings and conduit entries planned during design — not retrofitted after paving. Municipal procurement also emphasizes traceability, submittal documentation, and alignment with AWWA-influenced practices on materials and operation. Automation-ready worm gearboxes let utilities phase investment: manual operators at construction, actuators and SCADA integration when budgets and communications infrastructure allow.

Plant Applications

Valve Applications in Water Treatment Facilities

From raw water intake through final distribution, water facilities deploy butterfly valves, gate valves, and ball valves for isolation, balancing, and process control — each location imposes distinct torque, media, and access constraints on gear operators.

Application engineering starts with where the valve sits in the process and who must operate it. Intake and high-service pump headers use large butterfly valves for quick isolation; clarifier and filter galleries favor gate valves for tight shutoff on drains; sludge handling introduces abrasive loads and intermittent operation; distribution networks require reliable buried or chamber installations. Gear operator selection ties valve type to mounting standard, required effort at the handwheel, and future automation. The grid below summarizes common water treatment valve roles and how heavy-duty gear operators support flow isolation, maintenance bypass, and integration with water distribution infrastructure — a reference for OEM valve assemblers, EPC mechanical teams, and utility standards engineers reviewing submittals.

Butterfly Valve Systems

Quarter-turn worm gear operators sized for large-diameter butterfly valves on intake, filter effluent, and distribution headers — self-locking stages hold disc position under flow-induced torque.

Gate Valve Applications

Multi-turn gearboxes for rising and non-rising gate valves on drain, bypass, and sludge lines — torque paths support full-seat closure and periodic exercise programs.

Sludge Handling Systems

Heavy-duty operators for thickened sludge, digester, and dewatering isolation — reinforced housings and higher mechanical advantage for high-friction media.

Water Distribution Networks

Corrosion-protected gear operators for zone isolation, PRV bypass, and reservoir inlet valves — suitable for outdoor pedestals and chamber installations.

Wastewater Isolation Systems

Isolation on headworks, aeration basins, and effluent outfalls — moisture-resistant finishes and sealing for humid corrosive atmospheres in wastewater plants.

Industrial Water Pipelines

Process water, cooling, and pretreatment skids using ball and butterfly valves — compact operators with automation interfaces for integrated industrial water systems.

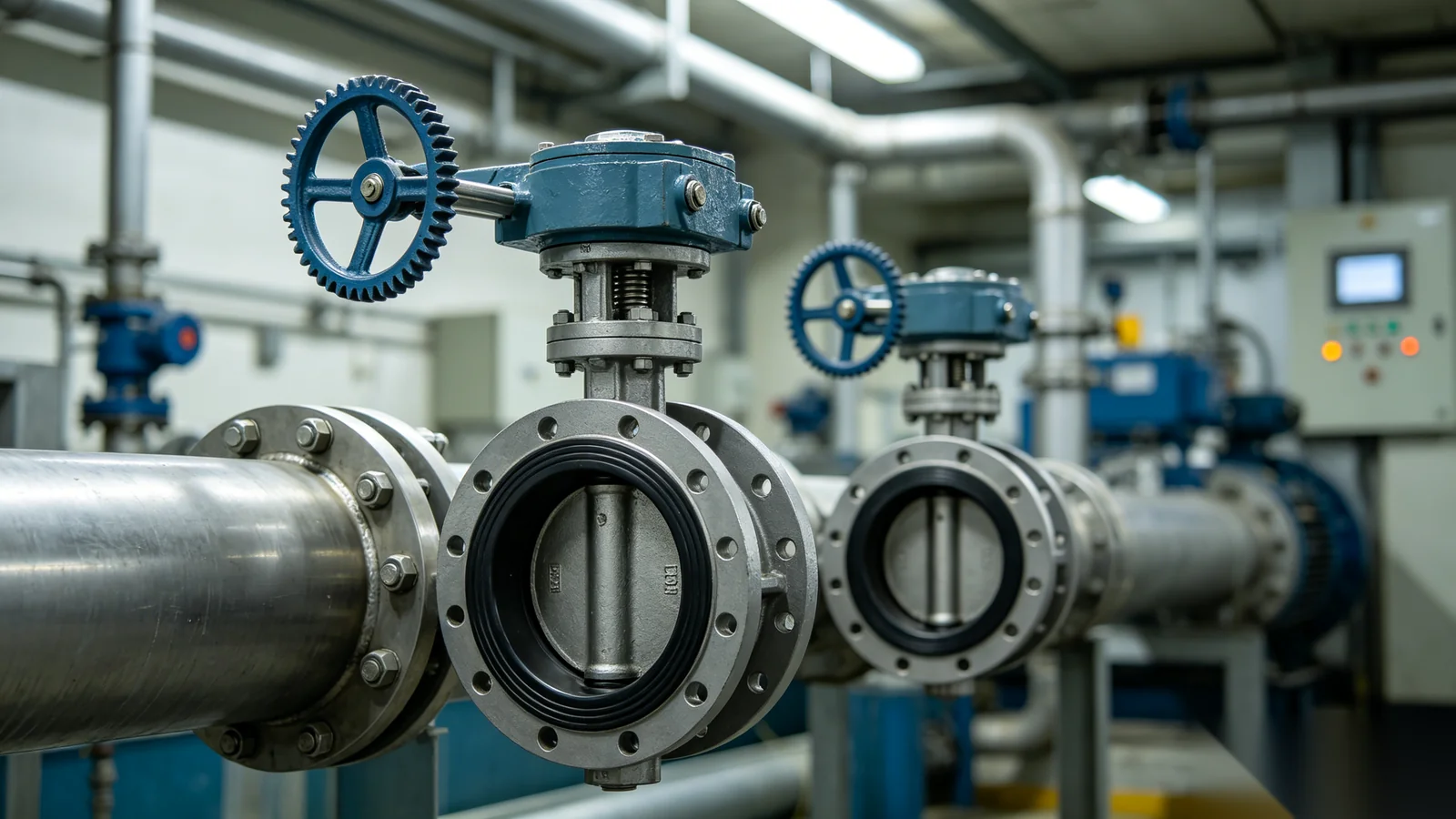

Butterfly and gate valves with gear operators installed in a water treatment facility

Gearbox Engineering

Heavy Duty Gear Operator Solutions for Water Systems

Quarter-turn and multi-turn worm gearboxes, manual override paths, and automation-ready configurations engineered for long service life in water utility and industrial processing duty.

Water system gear operators translate handwheel or actuator input into controlled valve motion while resisting back-driving and environmental degradation. Quarter-turn solutions pair with butterfly and ball valves; multi-turn units serve gate and globe patterns; self-locking worm stages are standard for position hold without continuous power. Heavy-duty torque transmission uses hardened worms, aligned bearings, and housings machined for stiff mounting to ISO 5211 patterns. Manual override remains essential where electric actuators are primary — declutchable or parallel handwheel paths support maintenance and power-loss procedures. Automation-ready configurations reserve stem clearance, coupling interfaces, and mounting pads compatible with electric actuators so plants can upgrade without replacing valve topworks. The feature grid outlines gearbox capabilities most referenced in water treatment specifications and OEM data sheets.

Quarter-turn Gear Operators

90° worm gear operators for butterfly and ball valves — ratio options matched to break, running, and end torque with self-locking worm pairs.

Multi-turn Valve Systems

Bevel and worm drives for gate valves requiring multiple rotations — thrust and torque capacity aligned to stem type and seat load.

Self-locking Worm Gearboxes

Worm-worm wheel geometry holds valve position without brake power — critical for large isolation valves and energy-conscious sites.

Heavy Duty Torque Transmission

Reinforced housings and bearing layouts for high-torque water headers and sludge service — bench-verified before shipment when specified.

Manual Override Systems

Handwheel access for actuator-equipped valves — declutchable and parallel override options for maintenance and emergency operation.

Automation-ready Configurations

ISO 5211 topworks, drive bushings, and mounting interfaces prepared for electric actuators — supports phased municipal automation programs.

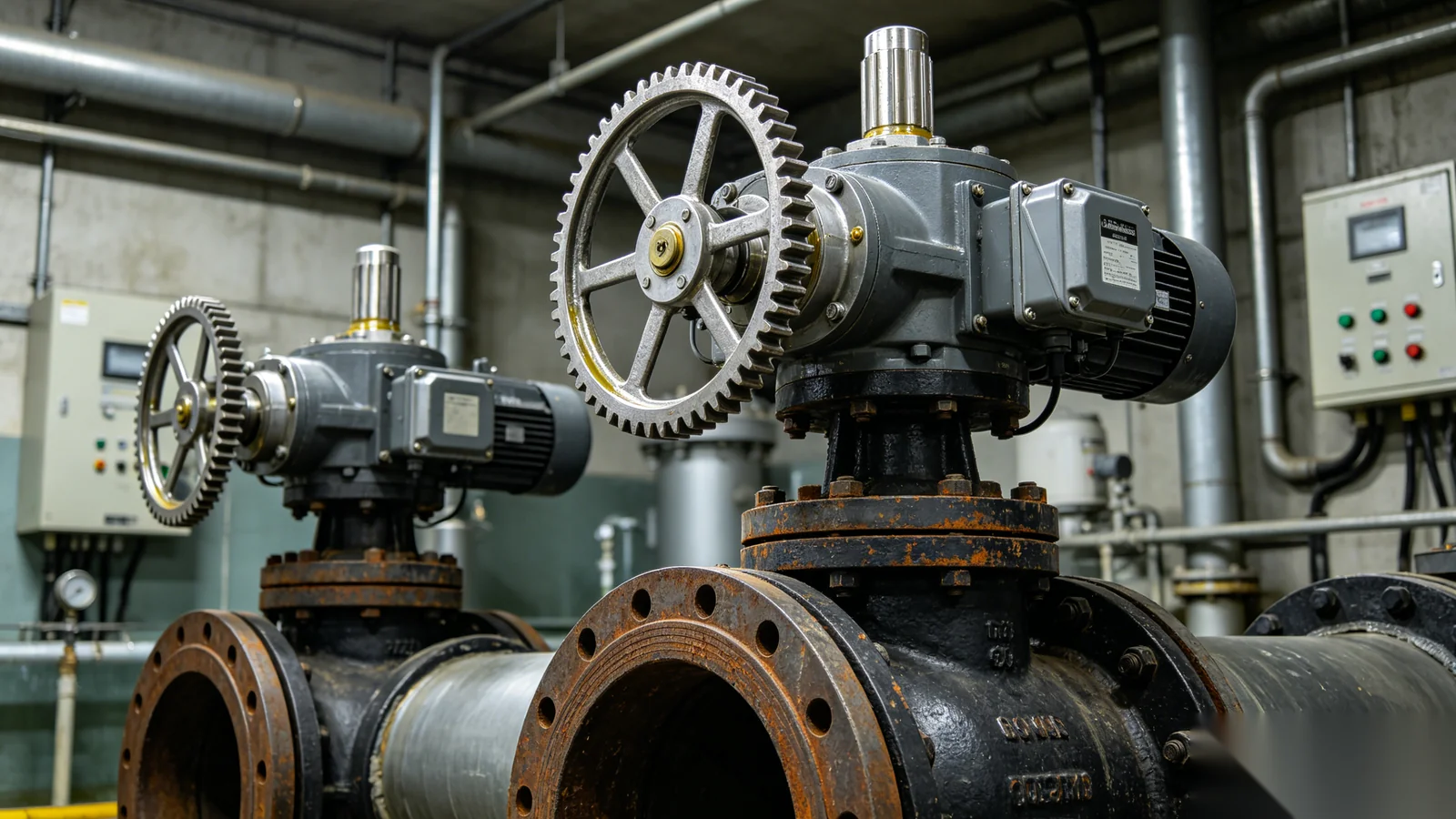

Heavy duty worm gear operator for quarter-turn water treatment valve

Environmental Engineering

Corrosion Protection and Environmental Resistance

Water treatment environments combine liquid exposure, humidity, chemical vapors, and UV for outdoor installations — all accelerating corrosion on unprotected cast and steel surfaces. Gear operators in these plants require systematic protection: sealed housings against splash and washdown, coatings rated for municipal outdoor service, and hardware grades that resist galling in wet conditions. IP67 and IP68 protection options address pedestal-mounted valves, flooded chambers, and buried service where condensation and infiltration are expected. Material and coating selection should be specified against the actual exposure class — clean indoor gallery versus open aeration basin — rather than defaulting to a single finish. Long-term durability reduces lifecycle cost for utilities that cannot afford frequent operator replacement on buried or hard-to-access lines. The topics below detail protection strategies engineers request on water project datasheets.

IP67 and IP68 Protection for Water Facilities

IP67-rated enclosures withstand temporary immersion and heavy washdown in pump rooms and chemical dosing areas; IP68 options extend protection for buried vaults, chamber installations, and sites with groundwater infiltration. Sealing design includes gasketed covers, sealed bearing entries, and cable glands planned for actuator leads. Specifiers should align IP class with installation geometry — a pedestal mount in a ventilated shelter differs from a flange pit that may flood seasonally. Testing and certification documentation support owner submittals and EPC quality plans. Combining IP-rated housings with corrosion-resistant coatings addresses both liquid ingress and external atmospheric attack common in wastewater and coastal municipal projects.

Corrosion-resistant Materials and Coatings

Epoxy and polyurethane coating systems over prepared substrates protect cast housings and covers; stainless steel fasteners and hardware reduce galvanic risk at dissimilar metal joints. For aggressive wastewater or chemical zones, upgraded coating thickness and holiday inspection may be specified. Worm and wheel materials are selected for wear resistance in cyclic duty; grease types compatible with water exposure maintain lubrication without washing out prematurely. Engineering documentation should state coating standard, color for UV stability if outdoors, and touch-up requirements after field machining. OEM valve assemblers benefit from consistent coating specs across an entire water valve line so spares match installed assets during decade-long plant life cycles.

Outdoor and Underground Valve Applications

Outdoor valves on reservoirs, transmission mains, and plant yards see temperature swing, UV, and precipitation; underground and chamber valves face confined humidity and contact with soil chemistry. Gear operators for these locations need drainage paths that do not trap water at the stem, protective covers for handwheels, and marking visible under maintenance lighting. Buried installations often pair with extension stems and floor stands — torque must be transmitted without binding through the extension. Coating and sealing choices should be coordinated with valve body protection and cathodic policies where applicable. Planning corrosion strategy at bid stage avoids retrofit wraps and premature failures that disrupt water distribution or wastewater compliance schedules.

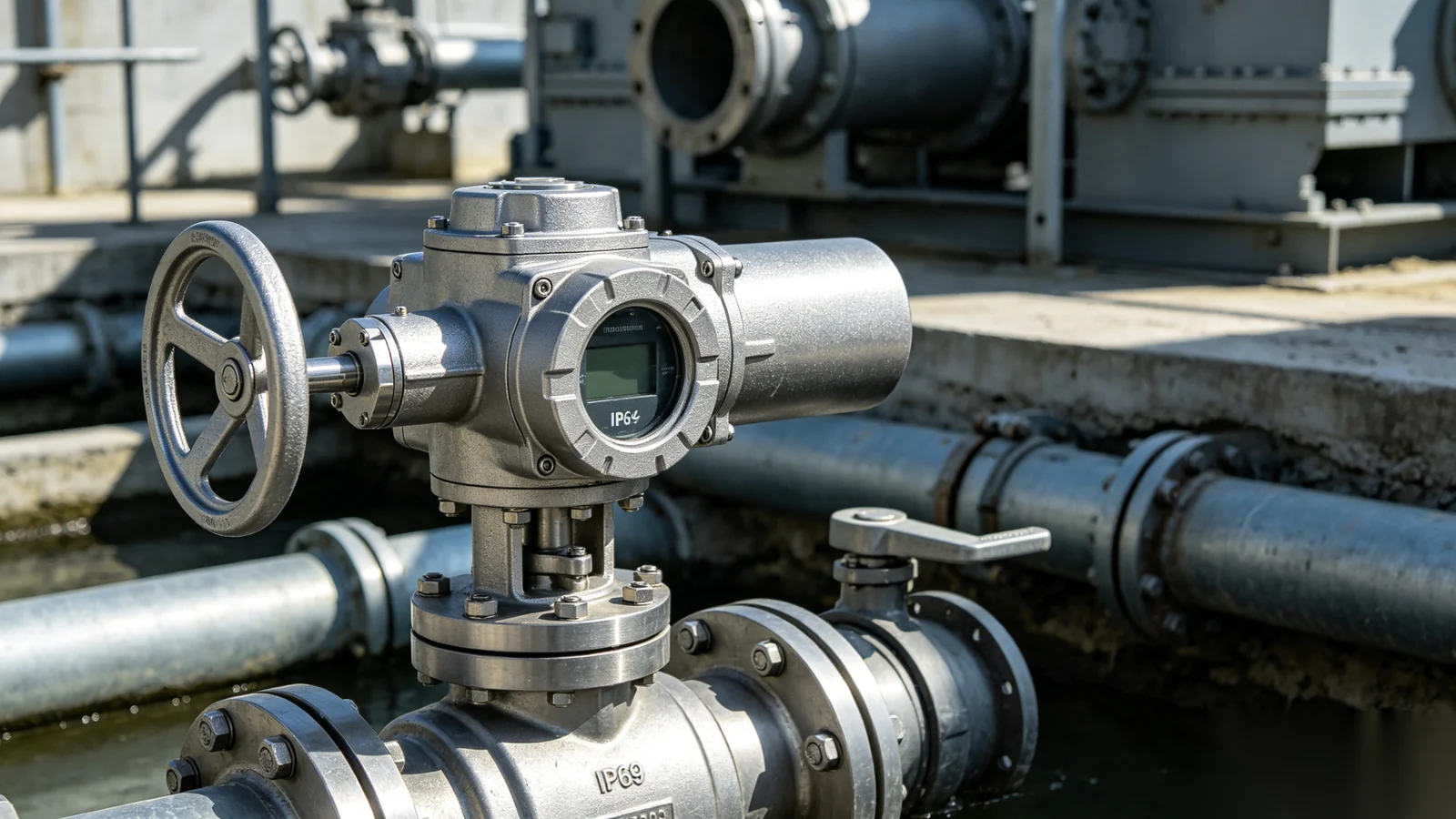

Corrosion-resistant gear operator with sealed enclosure for outdoor water facility installation

Smart Water Systems

Automation and Remote Operation Systems

Electric actuator compatibility, SCADA integration, and remote valve control for modern municipal and industrial water infrastructure monitoring programs.

Automation transforms water treatment from locally operated isolation to coordinated plant and network control. Electric actuators mount on gear operators or integrated topworks; supervisory systems poll position and torque; alarms tie to leak, level, and quality instrumentation. Successful integration requires mechanical compatibility — stem height, flange pattern, and torque margin — plus electrical interfaces understood by controls engineers. Smart water initiatives add condition monitoring and exercise scheduling to reduce stuck-valve risk. Gear operators act as the mechanical foundation: they must operate smoothly under actuator drive, permit manual override, and maintain position when power is removed. The blocks below outline automation capabilities referenced in water SCADA specifications and integrator checklists.

Electric Actuator Compatibility

Mounting and torque interfaces for multi-turn and quarter-turn actuators — verified stem alignment and drive bushing fit before site installation.

Remote Valve Control

Supports remote open/close commands from SCADA and RTU panels — reduces travel for large sites and distribution network isolation.

Smart Monitoring Systems

Position feedback and torque monitoring hooks compatible with modern actuator packages — aids predictive maintenance on critical isolation valves.

SCADA Integration

Control signals and feedback paths aligned with utility SCADA conventions — coordination with system integrators during FAT and commissioning.

Automation-ready Interfaces

Standardized bolting patterns and conduit entries — simplifies replacement and retrofit on existing butterfly and gate valve installations.

Industrial Water Infrastructure

PLC and DCS integration for industrial pretreatment and process water — gear operators sized for coordinated batch and continuous operations.

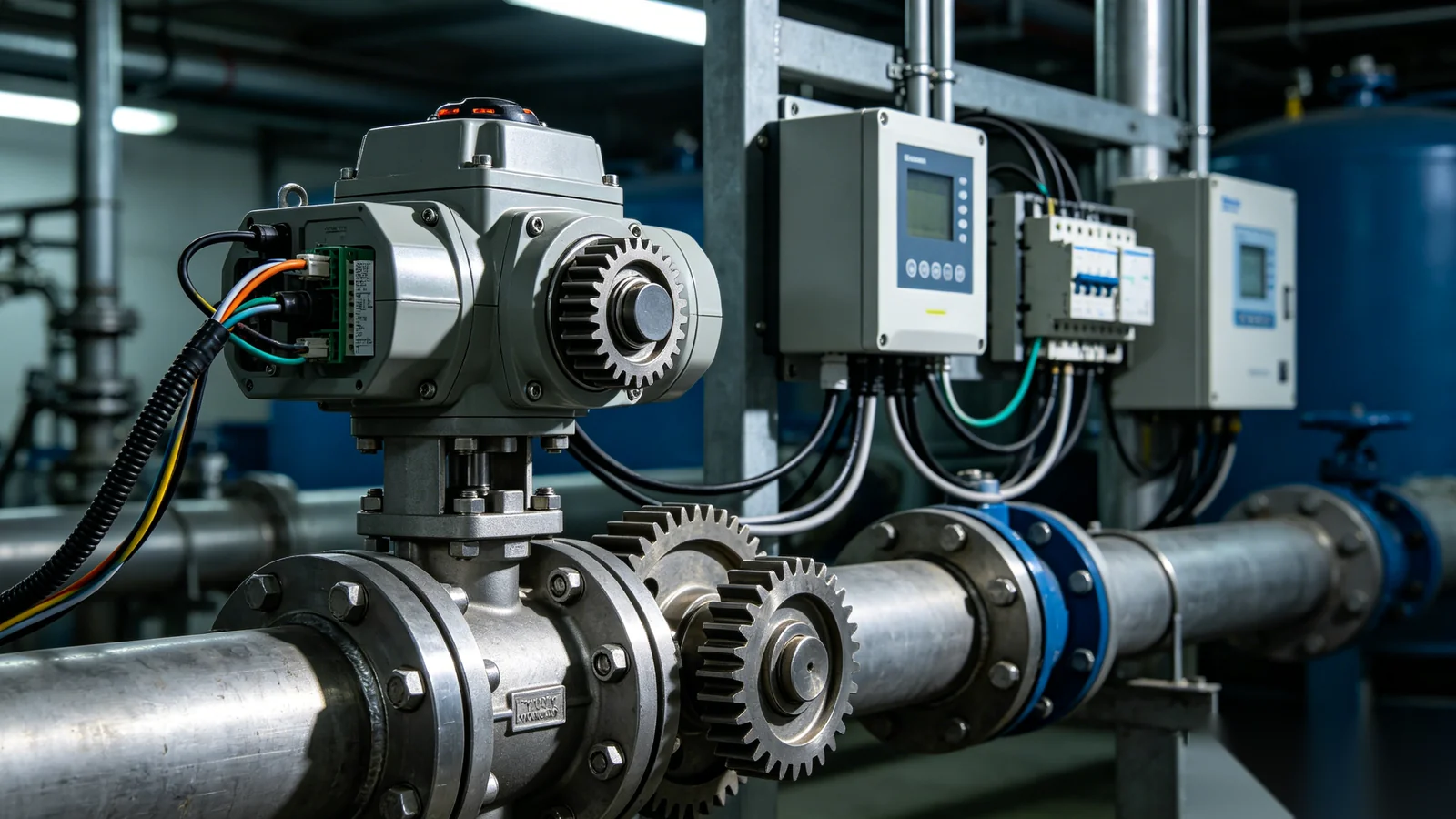

Electric actuator and gear operator integrated with water treatment SCADA control system

Project Delivery

OEM and EPC Support for Water Treatment Projects

Water treatment projects flow through municipal owners, EPC contractors, and valve OEMs — each needing different documentation and manufacturing flexibility. EPC schedules demand tagged submittals, torque tables, and installation drawings aligned to P&ID valves; OEM programs need private-label gear operators harmonized across butterfly, gate, and ball product lines; export projects add packaging, language, and certificate requirements. CAD support accelerates layout coordination in congested galleries and chambers. Engineering documentation — material lists, coating specs, and interface drawings — reduces RFIs during construction. Technical support during bid, approval, and commissioning helps align gear operator supply with valve and actuator vendors so the mechanical chain is coherent. The following topics describe how project partners engage on municipal and industrial water infrastructure work.

Support for Municipal Water Projects

Municipal water and wastewater projects require submittals that owners and their engineers can review against specifications — torque data, mounting dimensions, coating systems, and IP ratings stated clearly per tag. Batch delivery aligned to construction phases reduces yard storage and preserves coating integrity. Factory acceptance tests and inspection records support municipal QA processes. Our engineering team coordinates with EPC mechanical leads on valve lists, clarifies interface questions before fabrication, and aligns marking with owner asset management conventions. Whether the scope is a treatment plant expansion or transmission main isolation upgrade, project support emphasizes predictable documentation and schedule-aware production — the expectations municipal procurement places on critical valve automation suppliers.

OEM Valve Automation Solutions

Valve OEMs integrate gear operators at the factory or regional assembly centers — requiring consistent ISO 5211 patterns, ratio families, and labeling across a catalog. OEM programs include custom handwheel orientation, special coatings, and harmonized actuator mounting pads so downstream integrators see one interface standard. Private-label documentation and packaging reinforce OEM brand presence in export markets. Torque steps and housing sizes can be rationalized to reduce SKU complexity while covering municipal torque ranges. Collaboration includes prototype fit-up on customer valves, drawing approval, and locked manufacturing releases for serial production. OEM manufacturing support treats gear operators as part of the valve bill of materials, not a loose accessory — improving quality and reducing field adaptation.

Engineering Documentation and Technical Support

Engineering deliverables include 2D installation drawings, 3D models for layout clash checks, torque and effort tables, and maintenance instructions formatted for owner manuals. Technical support responds to bid clarifications, reviews actuator compatibility, and assists commissioning teams with stroke verification and override procedures. Export projects receive collated certificates and packing lists aligned to customs and site receiving. When specifications conflict — for example, buried service IP class versus actuator envelope — engineering documents the resolution before manufacture. This documentation-first approach reduces construction delays on water treatment jobs where valve galleries are congested and rework is costly.

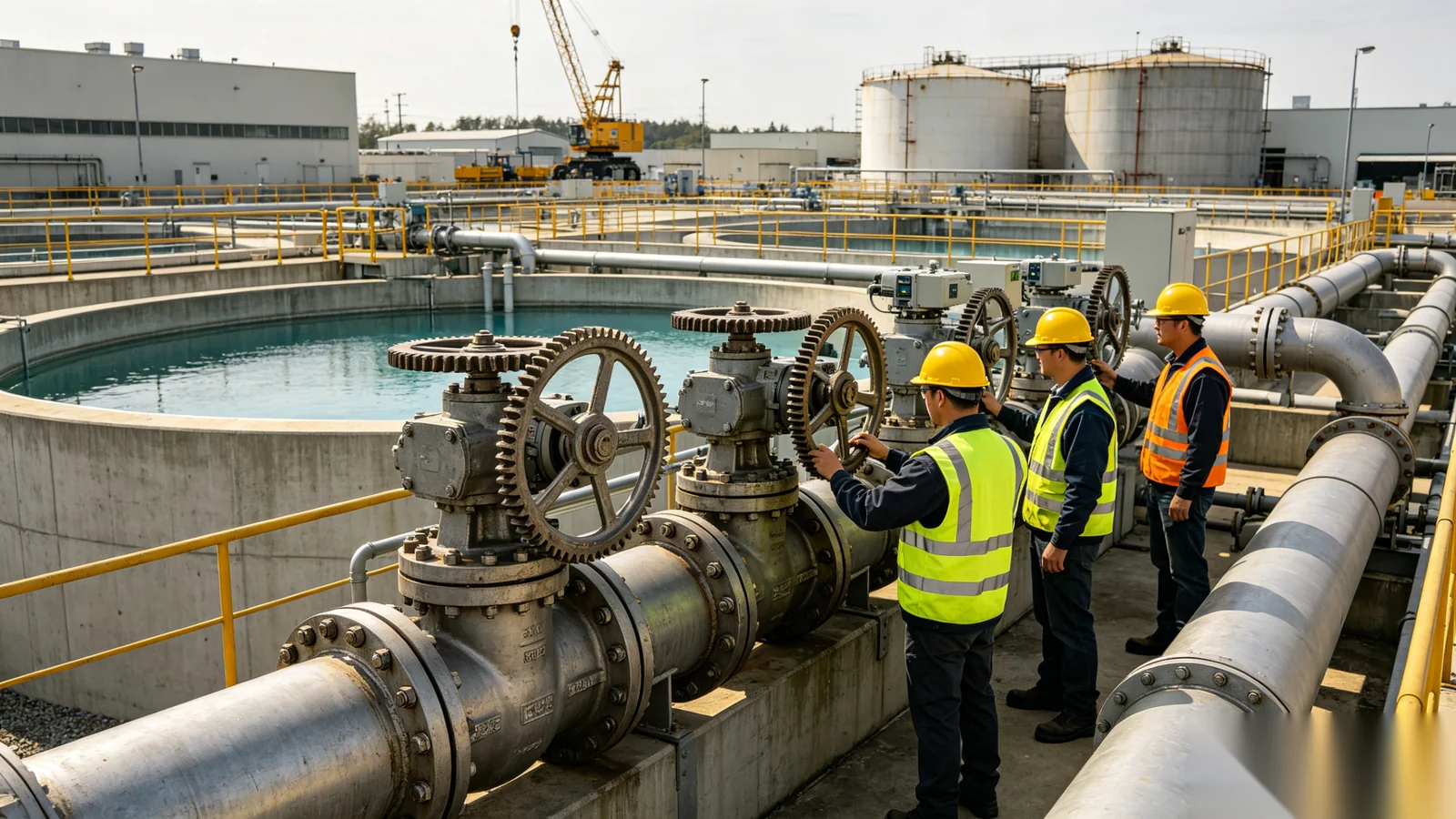

Engineering team reviewing water treatment EPC valve automation submittals and CAD drawings

Production Quality

Manufacturing and Quality Assurance for Water Industry Applications

Precision machining, torque verification, corrosion testing, and export quality control — manufacturing discipline aligned to long-term water infrastructure reliability.

Water industry gear operators must be manufactured with the same rigor as valves they drive: controlled machining, verified torque, inspected coatings, and traceable release. CNC machining produces housings, covers, and worms to drawing tolerances; assembly stations confirm rotation, backlash, and handwheel effort; coating lines apply environmental protection with thickness checks; export packing protects finishes in transit to global sites. Corrosion resistance testing and salt-spray validation support coating specifications claimed for wastewater and outdoor service. Quality assurance integrates with ISO 9001 procedures — incoming material checks, in-process dimensions, and final bench tests — so EPC inspectors and OEM auditors find consistent evidence. The manufacturing grid summarizes process capabilities most cited when qualifying suppliers for municipal and industrial water projects.

Precision CNC Machining

Housings, covers, and worms machined to released drawings — ISO 5211 interfaces and bearing bores held for stiff, aligned assembly.

Torque Verification

Bench testing confirms output torque and handwheel effort — results traceable to batch or tag when water project ITPs require.

Corrosion Resistance Testing

Coating thickness, adhesion, and salt-spray validation support outdoor and wastewater exposure claims on submittals.

Assembly Inspection

Rotation, backlash, and sealing checks before release — prevents field discovery of mechanical issues on critical isolation valves.

Surface Protection Systems

Epoxy and polyurethane systems with controlled surface prep — touch-up guidance for field installation on water projects.

Export Quality Control

Marking, documentation, and moisture-resistant packing for international municipal and industrial water infrastructure shipments.

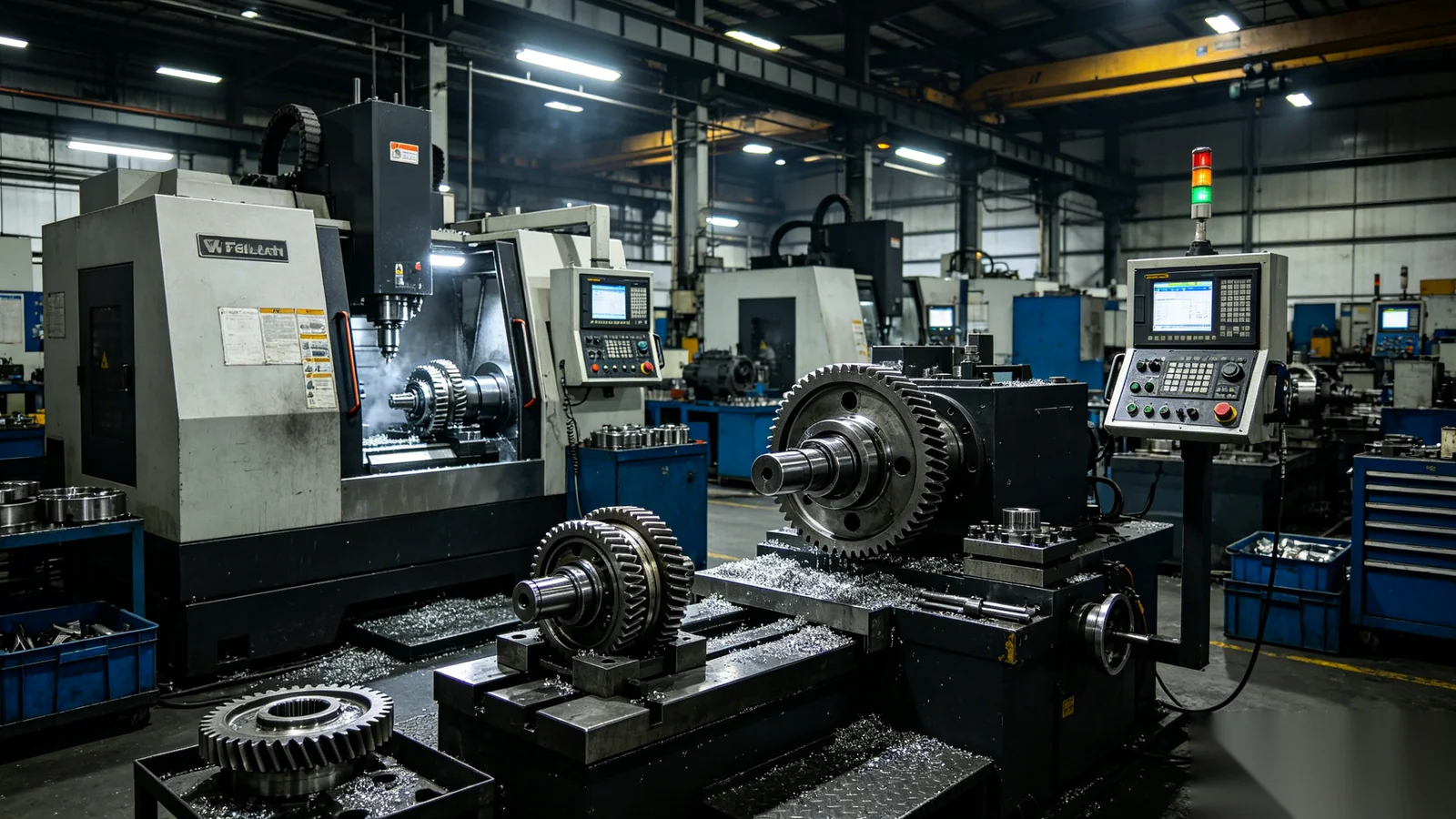

Manufacturing and quality inspection of worm gear operators for water treatment industry

Client Value

Why Water Treatment Clients Choose Our Valve Gear Operator Solutions

Owners, EPC contractors, and valve OEMs select gear operator partners based on application understanding, environmental durability, manufacturing evidence, and responsive engineering — not on generic catalog claims. Water treatment imposes a distinct risk profile: public continuity of supply, regulatory scrutiny, and assets that remain in service for decades. Clients value suppliers who speak the language of butterfly and gate valve duty, who document IP and coating choices clearly, and who support automation integration without forcing premature valve topwork changes. Export experience matters when projects span regions with different standards and logistics. The points below summarize why water industry stakeholders align valve gear operator procurement with our engineering and manufacturing approach.

Water treatment engineering expertise

Application focus on municipal, wastewater, and industrial water valve duty — not generic industrial catalog language.

Corrosion-resistant gearbox systems

Coatings and materials specified for humid, chemical, and outdoor water plant environments.

IP67/IP68 protection options

Sealed enclosures for washdown, chambers, and buried distribution valve installations.

Heavy duty valve automation support

Torque-rated worm gearboxes compatible with electric actuators and manual override.

OEM/EPC project capability

Tagged submittals, CAD releases, and schedule-aware production for water projects.

Precision manufacturing systems

CNC machining, assembly inspection, and torque verification under ISO quality procedures.

Export experience

Documentation and packing aligned to international municipal and industrial water infrastructure.

Technical engineering support

Bid, submittal, and commissioning assistance for gear operator and actuator coordination.

Common Questions

Frequently Asked Questions

What valve types are commonly used in water treatment systems?+

Water treatment facilities typically use butterfly valves for large-diameter low-head isolation and modulating service, gate valves for tight shutoff on drains and sludge lines, and ball valves in smaller chemical dosing and utility piping. Check valves protect pumps; control valves regulate level and flow where automated loops are required. Gear operators are matched to valve motion: quarter-turn worm gearboxes for butterfly and ball valves, multi-turn units for gate valves. Selection should consider media — clean, raw, or sludge — operating torque including safety factors, and whether electric actuation or SCADA control is planned during initial construction or a later upgrade phase.

Do you provide corrosion-resistant gear operators for water facilities?+

Yes. Gear operators for water treatment are supplied with epoxy or polyurethane coating systems over prepared surfaces, stainless or coated hardware, and grease types suited to humid and washdown environments. Specifications can be aligned to outdoor yard, indoor gallery, wastewater aeration, or buried chamber exposure. Coating thickness and inspection records support owner submittals. For aggressive service, upgraded systems and touch-up procedures after installation can be documented. Corrosion protection is treated as a core engineering requirement for municipal infrastructure life cycles, not an optional finish.

Are IP67 and IP68 protection options available?+

IP67 and IP68 protection options are available for gear operator enclosures and integrated packages where water ingress, washdown, or temporary flooding is expected. IP67 addresses powerful washdown and temporary immersion; IP68 extends protection for prolonged submersion in defined conditions suitable for buried vaults and flooded chambers when coordinated with installation design. Sealing includes gasketed covers and controlled cable entries for actuator wiring. Engineers should specify the installation class — pedestal, chamber, or buried — so the correct IP rating and coating system are quoted together on project datasheets.

Can your gear operators be integrated with electric actuators and SCADA systems?+

Gear operators are manufactured automation-ready with ISO 5211 mounting, drive interfaces, and torque margins compatible with common electric actuators. Integration with SCADA occurs through the actuator and plant controls architecture — position feedback, open/close commands, and alarms — while the gearbox provides reliable mechanical transmission and manual override. Engineering support can review actuator models, stem dimensions, and control signals during bid and submittal to avoid interface conflicts. Phased municipal programs often install manual operators first and retrofit actuators when communications and budgets allow, provided topworks were specified correctly at construction.

Do you support OEM and EPC water treatment projects?+

OEM and EPC support includes tagged submittals, torque tables, installation and 3D CAD data, coating and IP documentation, batch production aligned to construction schedules, and export packing with certificates. Valve OEMs receive harmonized mounting patterns and private-label options; EPC teams receive engineering responses for specification clarifications and FAT requirements. Technical support continues through commissioning for stroke checks and override procedures. Whether the project is a municipal treatment plant, wastewater upgrade, or industrial water skid, project delivery emphasizes documentation transparency and manufacturing traceability expected on critical water infrastructure work.

Need Reliable Valve Gear Operators for Water Treatment Projects?

Share your valve lists, environment class, and automation goals — our engineering team aligns worm gear operator solutions with municipal water, wastewater, and industrial processing scopes. OEM cooperation, valve automation support, and export documentation are available for global EPC projects. Request a consultation to review torque requirements, corrosion and IP protection, actuator interfaces, and manufacturing schedules before your next water treatment bid or plant upgrade.
